Master Compound Die
Specifications

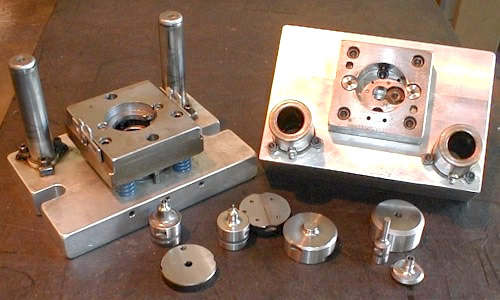

The master die is a precision two post steel or aluminum die shoe set with a knockout system, adjustable guides, and is key aligned for irregular shapes.
The master die is complete and will accept a variety of inserts up to the die capacity.
By using the K&K Compound Die Tooling system you eliminate excessive die design, assembly and tryout. The K&K system gives your company the advantage of lower cost tooling, ease of maintenance, quick changeover, and less storage without sacrificing accuracy and long tool life.
Die Capacity Chart
| Die Capacity | Shank Size | Slug Hole Diameter | Shut Height | Center To Back | Center To Front | Left To Right |
|---|---|---|---|---|---|---|
| 1 1/2″ O.D. | 2″ dia. x 2 1/2″ lg. | 1 1/32″ | 8″ | 4 1/8″ | 3 1/8″ | 10 5/8″ |
| 2 1/2″ O.D. | 2″ dia. x 2 1/2″ lg. | 1 3/4″ | 8 1/4″ | 4 5/8″ | 3 3/4″ | 11 5/8″ |
| 4″ O.D. | 2″ dia. x 2 1/2″ lg. | 2 7/8″ | 8 7/8″ | 5″ | 5 1/8″ | 14 7/8″ |
| 6″ O.D. | 2 1/2″ dia. x 2 7/8″ lg. | 4 3/8″ | 9 7/8″ | 7 1/2″ | 7 1/2″ | 14″ |
